Description
Videohub Master Control Pro Blackmagic

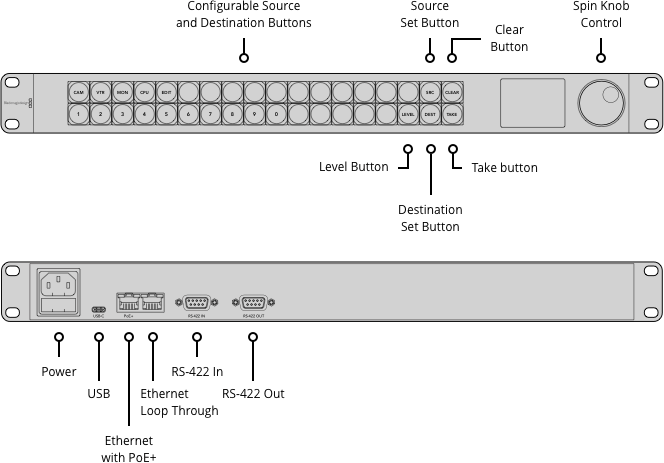

| Connections | |
| Ethernet | RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. |
| RS-422 | In and Out (for future implementation) |
| Computer Interface | USB-C for configuration and software updates. |
| Power | 100 – 240 AC |
Hardware Control
Internal Software
Operating Systems
Mac 10.15 Catalina,Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Installation
Button Configuration
Power Requirements
Power Fail Requirements
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 – 240 V AC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What’s Included
Videohub Master Control Pro
Warranty
12 Months Limited Warranty.
