Description
DeckLink SDI Micro Blackmagic
| Connections | |
| M.2 | M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601. |
Available Accessories
Part Numbers
DeckLink SDI Micro, order code: BDLKMICROSDI

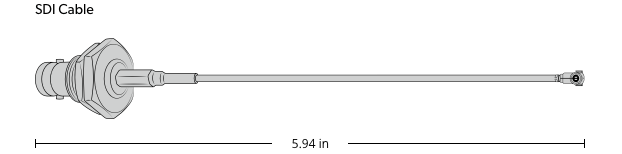

SDI Cable, order code: CABLE-BDLKMIR/SDI
Physical Specifications
Operating Systems
Mac 12.0 Monterey,Mac 13.0 Ventura or later.
Windows 10, 64-bit.Windows 11.
LinuxPower Requirements
Power Consumption
4.03 W (max)
Environmental Specifications
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-40°C to 75°C (-40°F to 167°F)
Relative Humidity
0% to 90% non-condensing
What’s Included
DeckLink SDI Micro
Fan and Heat Sink assembly
Warranty
3 Year Limited Manufacturer’s Warranty.
